The Cebora Pocket Pulse MIG Inverter is a limited edition MIG/MAG welding power source in an extremely portable package weighing just 13.5 kg.  The Cebora Pocket Pulse is in a small package, yet features dozens of pre-installed synergic programs to allow optimal machine settings for inexperienced welders, whilst allowing extreme fine tuning for the accomplished welder.  The pulsed MIG function, which comes factory fitted, allows to obtain high quality welds even on “difficult” materials and thin thicknesses.  Pulsing of the current provides limited heat transfer (with a consequently lower distortion of the workpiece), a higher penetration, an accurate control of the welding arc, the absence of spatter and an extraordinary aesthetic result.

37 Synergic programs including:

Mild Steel                Ø 0.6 / 0.8 / 0.9 and 1.0mm

Stainless Steel        Ø 0.8 / 0.9mm

Aluminium               Ø 0.9 / 1.0mm

CuSI 3%                 Ø 0.8 / 0.9mm

Flux Cored Wire     Ø 0.9mm

SALIENT FEATURES

• An easy to read LCD screen on the front panel shows on 3 lines, wire and gas type, current and thickness, voltage and wire speed.
• Due to its small size and low weight this is an extremely versatile power source, suitable for various applications including repairs, maintenance and basic car body repairs.
• Possible to run the machine using a generator (min 6 kVA).
• 185A at 20% and 110A at 100% duty cycles
• Suitable for “do-it-yourself” type use due to the low required power input of 2.7 kvA at 100% makes it possible to use the machine on a domestic power supply
• Reverse polarity making gasless welding possible when used with flux cored wires
• Small size, with all the functions of a big latest generation MIG welder

Complies with EN 61000-3-12.

OPTIONAL ACCESSORY:  Dedicated trolley Art 1653

The Cebora Pocket Pulse Synergic MIG is probably the most economical way into brazing high strength and Boron steels. The Pocket Pulse is a single phase (230v) portable machine which can weld from as low as 20 amps right up to 185 amps. It features 37 different welding programmes and can weld aluminium with the option pack.

Package includes
3 metre earth lead, regulator and a 3m MIG torch. Superb body shop machine.

Features

• 2 Roll Feeder
• Synergic Mode
• Pulse MIG Welding
• MIG Brazing
• Flux Cored Welding
• Hot Start
• 5Kg Spool Holder
• Crater Fill
• Spot Timer
• Stitch Timer
• Soft Start
• Burn Back
• Pre/Post Gas
• Adjustable Inductance
• 3L 3 Levels
• PFC Compliant EN6100000 3 12
• Generator Compatible

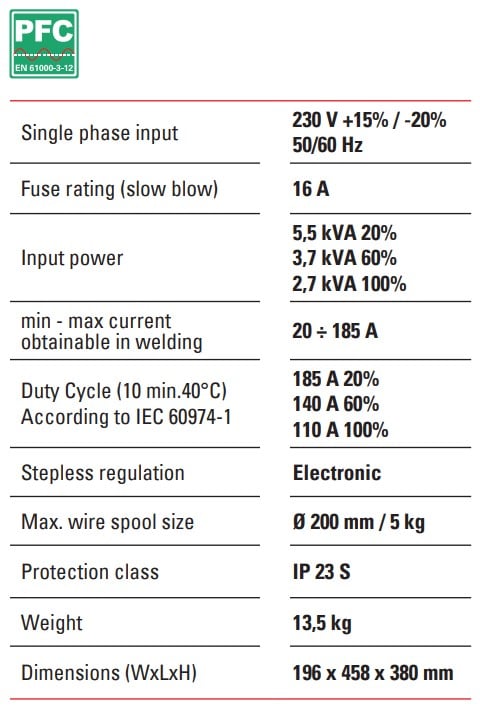

Technical Specification

• Power Supply (+ 15%/-20%)               230v 1Ph
• Fuse A                                                16 amps
• Regulation Field                                   20-185 amps
• Duty Cycle @ 60%                               140 amps
• Protection class                                    IP23S
• Weight                                                13.5Kg
